Fig. 7
From: Butanol production from lignocellulosic sugars by Clostridium beijerinckii in microbioreactors

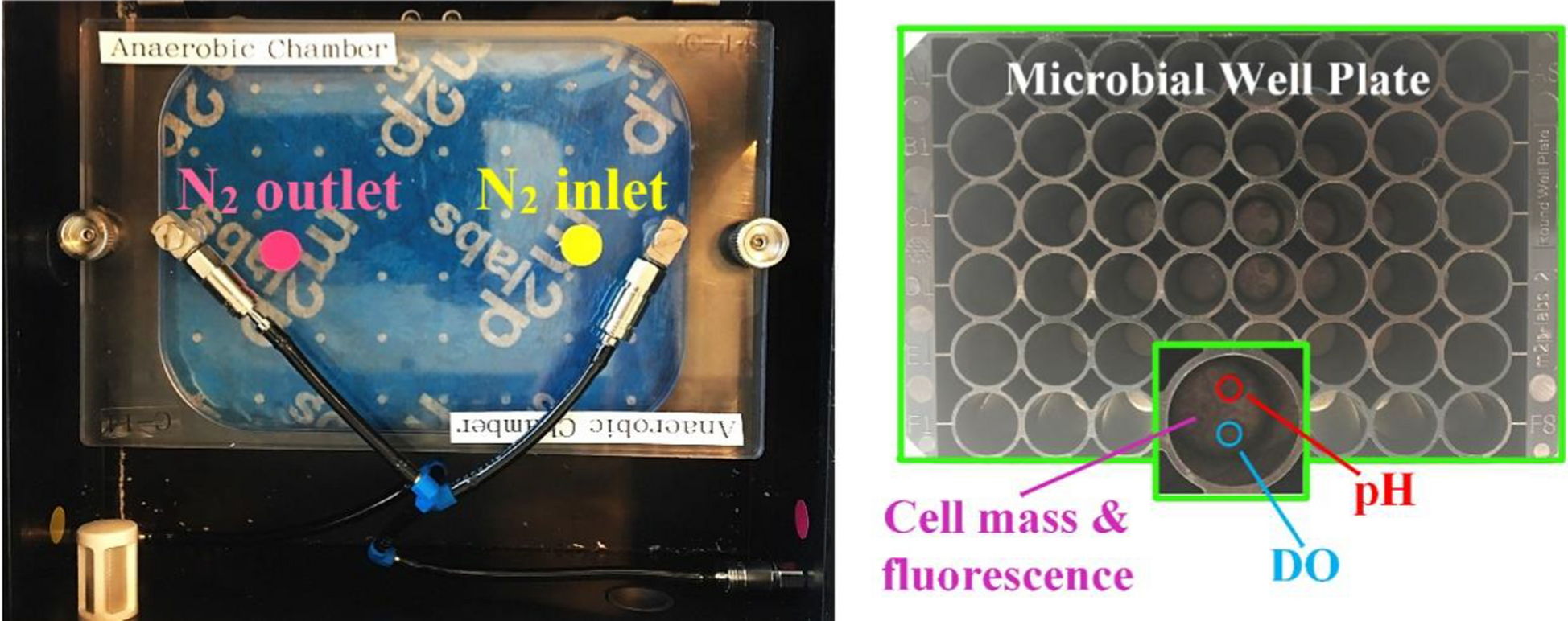

BioLector® anaerobic chamber (left), round-well plate, and a single well showing the sensors for dissolved oxygen (DO) and pH, and the area for detecting cell mass by means of light scattering and fluorescence (right)
